| Product: | Steering Valve | Model: | 109S-1-40-09-A |
|---|---|---|---|
| Power: | Hydraulic Driving | Founction: | ON |
| Relief Valve: | Yes | Shock Valve: | Yes |
| Relief Valve Ressure: | 16 Mpa | Check Valve: | Yes |
| Highlight: | mini forklift Steering Valve,mini tractor Steering Valve,Mini Tractor Steering Control Valve |
||
Welcome!
We're manufacture from China, provide Hydraulic Steering Unit to fit Tractors, trucks, loaders, forklifts, excavators, backholes, cranes, aerial platforms, farm machines, etc.
Partners include OEM, hydraulic importers, hydraulic distributors
Please see product introduction below:

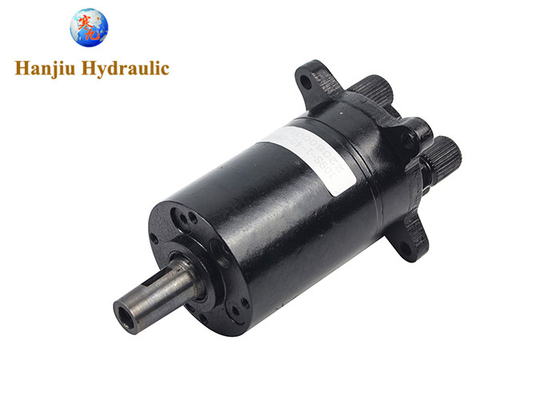

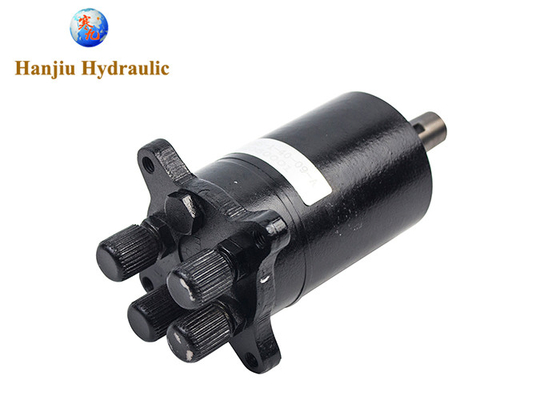

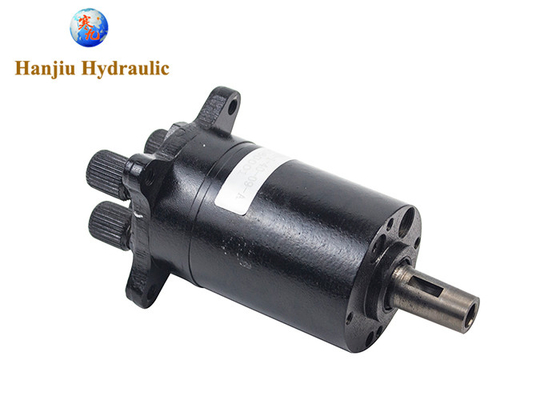

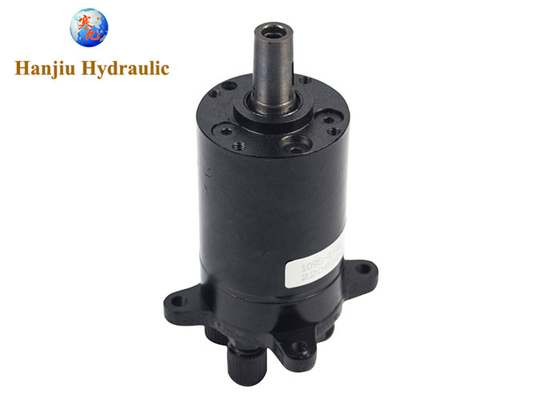

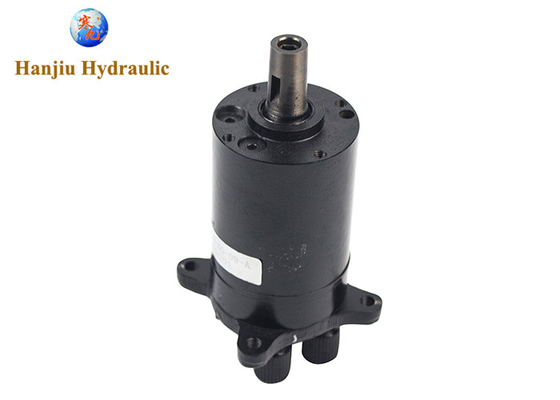

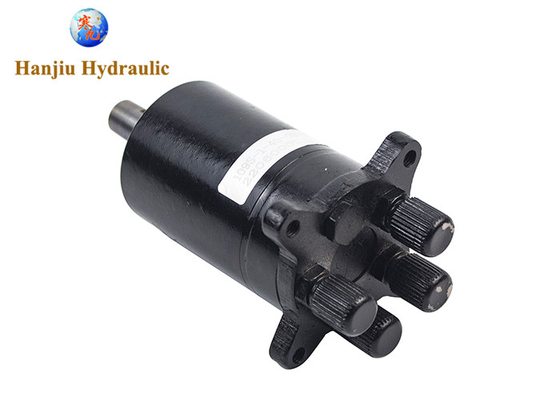

109S-1-40-09-A ON OSPM 40 ON Equivalent Steering Control Valve
Parameters:
| Type 109*-1-***-**-* | ||||||
| Displacement(mL/r) | 20 | 32 | 40 | 50 | 63 | 80 |
| Rated flow(L/min) | 3~20 | |||||
| Rated Pressure(MPa) | 12.5 | |||||
| Relief Valve Pressure Settings(MPa) | 06,07,08,09,10 | |||||
| Shock Valves Pressure Settings(MPa) | 12,13,14,15,16 | |||||
| Steering Torque(N·m) | ≤1.8 | |||||
| Max．Cont．Preesure in Line T-PT(MPa) | 1 | |||||
| Dimension L(mm) | 87 | 92 | 96 | 100 | 105 | 113 |
Features:
109 series hydraulic steering unit is an integrated orbital steering unit with 4/5 tooth structure.This kind of steering unit has a small and exquisite structure with integrated check valve, relief valve and shock valves and its mounting dimension conforms to international standard.
Application:
This kind of steering unit is widely used in mini vehicles, such as mini forklift, mini tractor (and other agricultural machinery), mini earthmoving machinery, mini municipal vehicle, etc. It can obtain more steering output torque through input of less power, with features of easy, flexible and reliable operation.
More Steering Unit recommendations:
| Code | Hanjiu Code | Description | Displacement | Fuction |
| OSPC / HKUS | 101S | Aftermarket | 50cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 80cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 100cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 125cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 160cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 200cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 250cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 315cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 400cc | ON/OR/LS |
| OSPC / HKUS | 101S | Aftermarket | 500cc | ON/OR/LS |
| OSPC / HKUS | 101S | OEM level | 50cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 80cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 100cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 125cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 160cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 200cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 250cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 315cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 400cc | ON/OR/LS/CN |
| OSPC / HKUS | 101S | OEM level | 500cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | Aftermarket | 50cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 80cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 100cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 125cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 160cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 200cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 250cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 315cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 400cc | ON/OR/LS |
| OSPB / HKU | 101 | Aftermarket | 500cc | ON/OR/LS |
| OSPB / HKU | 101 | OEM level | 50cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 80cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 100cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 125cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 160cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 200cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 250cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 315cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 400cc | ON/OR/LS/CN |
| OSPB / HKU | 101 | OEM level | 500cc | ON/OR/LS/CN |
