Product Details:
Payment & Shipping Terms:
|
| Type: | Steering Unit | Model: | 101s-5t-HC |
|---|---|---|---|
| Application: | Vehicles With Fully Hydraulic Steering Systems | Founction: | Load Sensing |
| Relief Valve: | Yes | Shock Valve: | Yes |
| Check Valve: | Yes | Warranty: | 1 Year |
| Highlight: | 100cc Priority Valve,Load sensing Priority Valve |
||

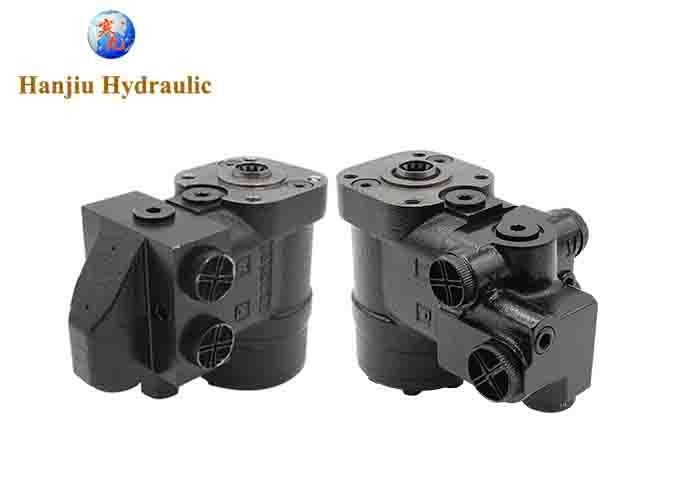

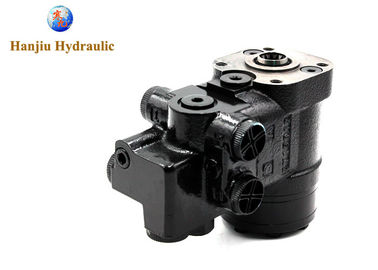

Steering Unit with Priority Valve 100CC, Crossover HKUS/5-125+PRD80/4

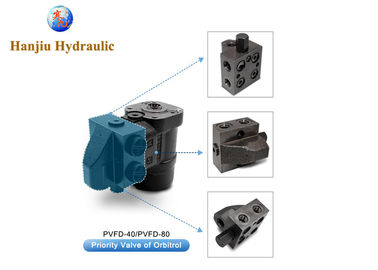

STEERING UNIT+PRIORITY VALVE
Part number: 101S-5T+PVSD80
Crossover: HKUS/5-125+PRD80/4
Weight: 9 kg
Purchase at least: 1 pc
Manufacturer: HANJIU HYDRAULIC
LS valve = 125 bar
Anti-shock valve = 175 bar
Specifications:
| Parameters | Series: 101s similar to OSPC | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure (Mpa) | 16 | ||||||||||
| Relief Valve Pressure ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
We provide orbitrol for Agri and heavy tractors, loaders, forklifts, boats, and many more.
Form, fit, and function the same M+S, Eaton, Danfoss, Catterpillar, Komatsu, , Youli, Bobcat, John Deere, and many more, at a substantial savings
Please send your request list to ask a best quote
Probably you also interest other hydraulics, contact us, send your request list, we will check and reply with best offer aswell
Tel: 86-311-68123061
Fax: 86-010-80115555-568844
