Product Details:
Payment & Shipping Terms:
|
| Item: | Orbitrol | Code: | 1501189 |
|---|---|---|---|
| Aftermarket Code: | 101S-5T-100 | Function: | LS |
| Displacement: | 100 Ml/r | Max Input Pressure: | 17.5 MPa |
| Highlight: | 100ls Orbital Steering Valve,LS Orbital Steering Valve |
||

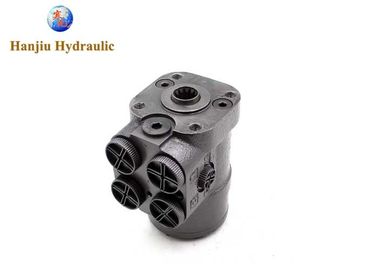

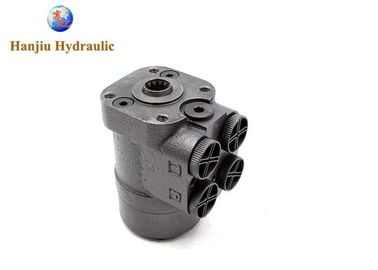

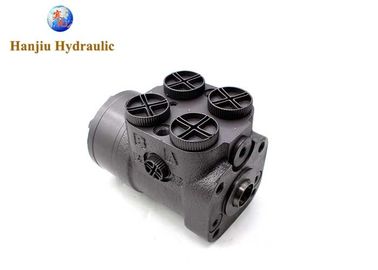

Orbitrol - OSPC 100 LS - 1501189 - 100 cm³/rev - 1/2 BSP - 170 bar
Quick review:
Original number: 150-1189
Aftermarket code: 101s-5t-100
Particularities:Control unit with valve function
Application: Vehicles and ships with fully hydraulic steering systems
Displacement: 100 cm³ / rev
T max. (Bar): 20 bar
L, R max.: 225 bar
P max (bar): 170 bar
Performance: LS
LS connection: Ø 5
A (BSP): 1/2
Characteristics:
Minimal loss of energy
No oil flow in the steering when not steering
High safety and comfort
Low noise development
Low pressure drop
Only very little steering wheel operating force required
Even if the steering pump fails, the steering is guaranteed (emergency steering)
We produce hydraulic steering control unit for Forklifts, Loaders, Backholes, Tractors, can be used on Komatsu equipments and other heavy equipments.
Specifications:
| Parameters | Series: 101s similar to OSPC | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
