| Model. No.: | 101S-3 | Relieve Valve: | 15Mpa |
|---|---|---|---|
| Function: | Close Center | Max Back Pressure: | 2.5 MPa |
| Highlight: | John Deere Steering Valve,15Mpa Hydraulic Steering Units |
||

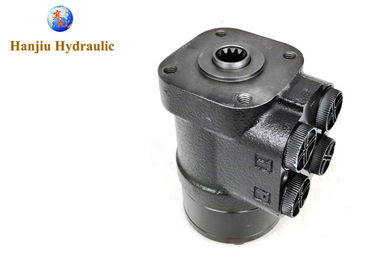

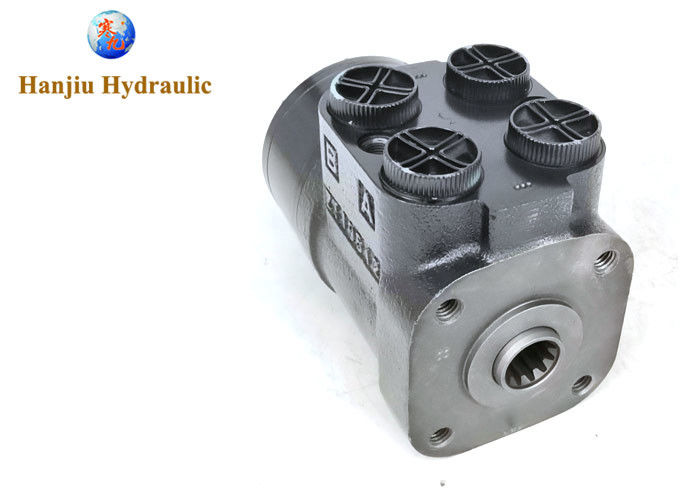

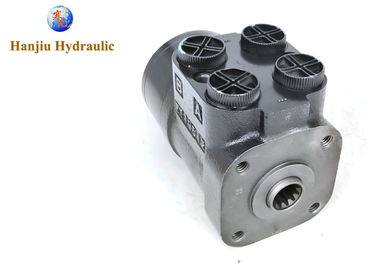

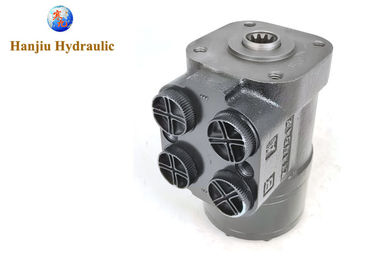

John Deere AT176927 Steering Valve hydraulic charlynn eaton steering units
This hydraulic orbital steering pump made by high quality in China, same as European type
replace for John deere AT176927/AT101757
Quick details:
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Specification:
| Parameters | Series 101*-***-**-* |
||||||||||
| Function code | 1,2,3 | 1,3 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| Hanjiu | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 |
1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Hanjiu | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON |
240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Hanjiu | Fiat OEM | Fiat |
| 101s 100 ON |
(5140383) / 5143319/ 2WD
HKUS100/ON
OSPC100/ON
|
100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
