| Product Name: | Bulldozer HYDRAULIC PARTS | Relieve Valve: | 15Mpa |
|---|---|---|---|
| Shock Valve: | 21Mpa | Function: | Load Sensing |
| Displacement: | 500 Ml/r | Max Input Speed: | 75rpm |
| Highlight: | hydraulic orbital valve,forklift steering valve |
||

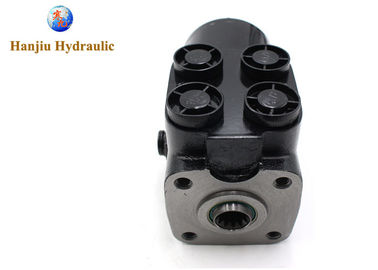

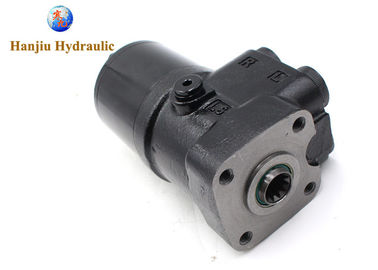

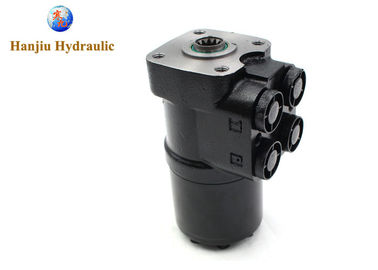

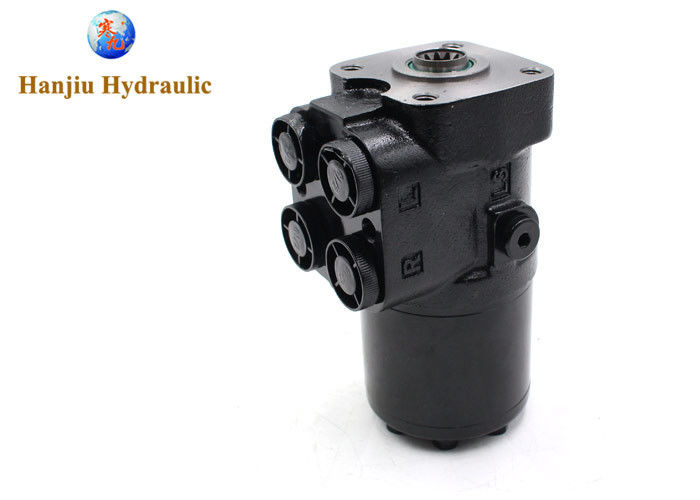

hydraulic heavy machines parts bulldozer hydraulic steering units charlynn 263-4114-002
this type of hydraulic orbitrol steering units is for heavy equipment, like bulldozers,wheel loaders, backhole loaders.
earthmovers, .....
displacement:500liters
function:load sensing non reaction
crossing code:263-4114-002
Features:
Multi types, sizes, key or splind shafts available
Suitable for nearly all kinds of CARTERPILLAR,KOMATSU,DOOSAN,SHANTUI
Different oil port,different types of shaft, different flange can choose.
Many kinds of displacement, can suitable for any hydra ulic systems.
High quality materials to produceorbitrol steering unit body(Aluminum&Alloy).
100% replace the OEM parts,70%-80% save cost.
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Specification:
| Parameters | Series 101S-5(T)(TE)(L)(E)-*** |
|||||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 | 500 |
| Max.input speed(rpm) | 100 | 75 | ||||||||||
| Max.input pressure(Mpa) | 17.5 | |||||||||||
| Max.cont.back pressure | 2.5 | |||||||||||
| Relief Valve Pressure Settings(Mpa) | 06,07,08,10,12,14,15,165,17.5 | |||||||||||
| Shock Valves Pressure Settings(Mpa) | 12,13,14,16,18,20,21,22,23.5 | |||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.93 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 | 8.3 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 | 183 |
related OEM parts
| Hanjiu | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 |
1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Hanjiu | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON |
240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Hanjiu | Fiat OEM | Fiat |
| 101s 100 ON |
(5140383) / 5143319/ 2WD
HKUS100/ON
OSPC100/ON
|
100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
