Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Motor | Type: | Orbit Motor |
|---|---|---|---|
| Direction: | Left And Right | OEM #: | Char-lynn 101-1001-009 |
| Speed: | 969 Rpm | Displacement: | 46cc |
| Port Size: | 1/2 Inch NPTF | Shaft Size: | 1 Inch Dia X 1-3/4 Inch Length |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor |
||

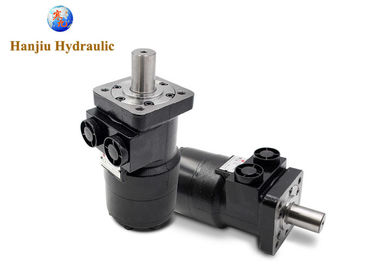

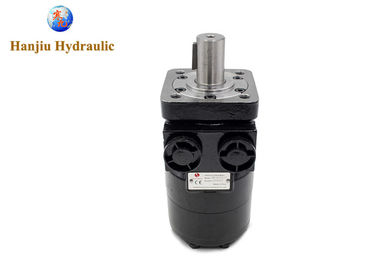

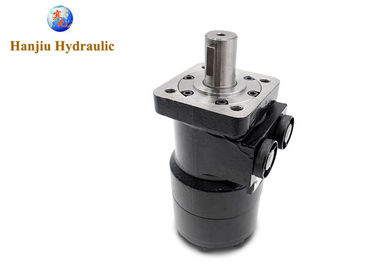

Char-Lynn 101-1001-009, 4 Bolt Flange, 2.8 in³/r Displacement, 1/2in NPTF Ports
This is a replacement hydraulic motor for Char-lynn 101-1001-009
OEM # 101-1001-009
Alternative #: BMPH-46
Item: Hydraulic Motor
Type: LSHT Gerotor
Series: H Series
Displacement: 2.8 cu-Inch-rev
Pressure Rating 1800 psi
Speed 969 Rpm
Output Torque 650 Inch-lb
Flow Rate 12 gpm
Port Type Side
Port Size 1/2 Inch NPTF
Mounting Type 4-Bolt, 1.75 Inch Pilot
Oil Viscosity 100 SUS
Oil Temperature 180 deg F
Shaft Size 1 Inch Dia x 1-3/4 Inch Length
Shaft Type Keyed Woodruff
| Main Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
APPLICATIONS
Agricultural augers, harvesters, seeders, snow plows, railroad maintenance equipment, concrete and asphalt equipment and more.
FEATURES
Designed for medium duty applications, it's use industry-proven spool valve technology, combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.
We provide more Char-lynn Motors:
| Char-lynn code | Hanjiu code |
| 101-1001 | BMPH-46 |
| 101-1002 | BMPH-74 |
| 101-1003 | BMPH-96 |
| 101-1004 | BMPH-159 |
| 101-1005 | BMPH-200 |
| 101-1006 | BMPH-231 |
| 101-1007 | BMPH-294 |
| 101-1008 | BMPH-370 |
| 101-1009 | BMPH-46 |
| 101-1011 | BMPH-96 |
| 101-1017 | BMPH-46 |
| 101-1018 | BMPH-74 |
| 101-1019 | BMPH-96 |
| 101-1025 | BMP-46 |
| 101-1026 | BMP-74 |
| 101-1027 | BMP-96 |
| 101-1028 | BMP-159 |
| 101-1029 | BMP-185 |
| 101-1030 | BMP-231 |
| 101-1031 | BMP-294 |
| 101-1032 | BMP-370 |
