Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Motor | Type: | Orbit Motor |
|---|---|---|---|
| Direction: | Left And Right | Displacement: | 400cc |
| OEM #: | Char-lynn 105-1411-006 | Alternative #: | BMK2-400-WE-T4-SU |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor |
||

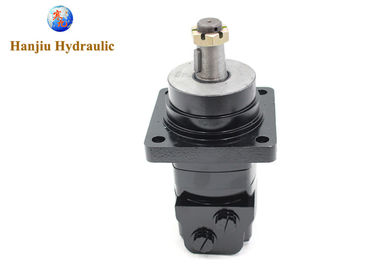

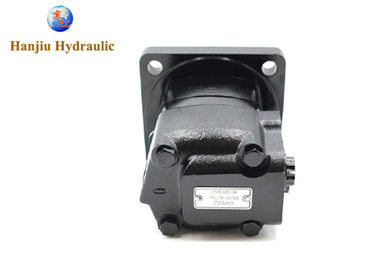

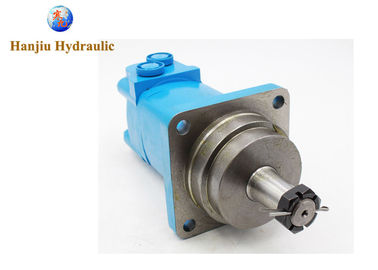

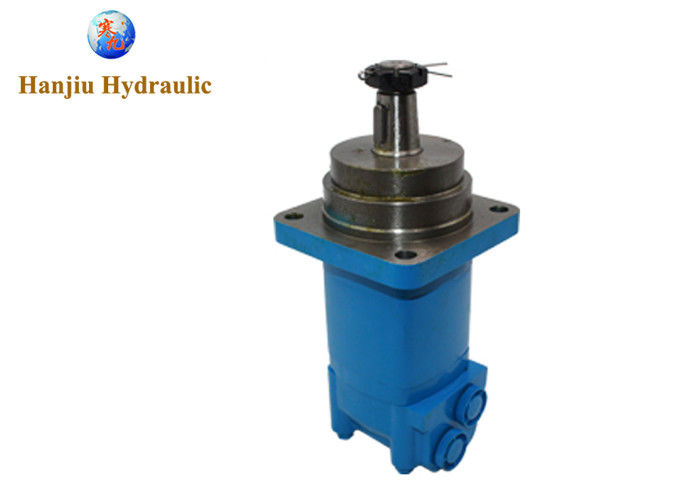

Wholesale Eaton 105-1411-006 replacement hydraulic motor 400cc wheel motor
Char-Lynn (Eaton) 105-1411-006 replacement 400cc wheel motor tapper shaft
This is a Eaton replacement motor
OEM #: 105-1411-006
Aftermarket #: BMK2-400-WE-T4-SU
Hydraulic Geroler Disc Valve Motor
2000 series - Wheel,
400 cm³/r Max Geometric Displacement
3000 psi Maximum Operating Pressure
| TYPE | BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 |
|
We provide more Eaton type motors:
