Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Motor | Type: | Orbit Motor |
|---|---|---|---|
| Direction: | Left And Right | Displacement: | 490cc |
| OEM #: | Char-lynn 112-1075 | Alternative #: | BMK6-500-WT1SF5 |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor |
||

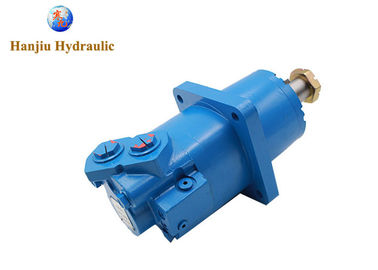

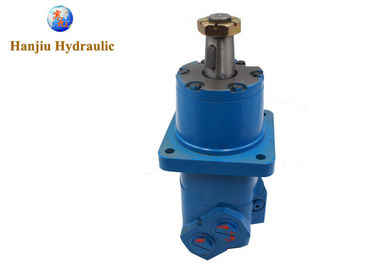

Replacement hydraulic motor for Eaton Char-Lynn 6000 Series 112-1075 490 Cm3 Wheel Motor
Quick detail:
This is replacement hydraulic motor for Eaton Char-Lynn 6000 Series Low Torque High Speed Orbital Hydraulic Motor
OEM #: 112-1075, Char-Lynn Eaton hydraulic orbital motor 490 cc / rev with taper shaft
Aftermarket Part No. BMK6-500-WT1SF5 , NEW Replacement Hydraulic Motor
Type: LSHT Gerotor
Series: 6000 Series
Approximate weight (kg): 28.5
Availability: Consult
Displacement: 491.4 cc / rev.
Shaft: tapper shaft
Flange: Square with 4 fixing holes.
Fits: Conveyors, Winches, Traction drives, Augers, Irrigation/utility cable reels, Industrial Sweepers and Floor Polishers
BMK6-500-WT1SF5
| TYPE | BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 |
|
NEW Replacement Eaton Char-Lynn Orbit Motor LSHT Hydraulic Motor, 490 Cm3-R_ Wheel Motor
Light-weight and compact. This motor does the internal organs of a unique slowdown organization and can install it for a small space.
External drain piping unnecessarily. The special high-pressure shaft seal permits high back pressure without an external drain at almost all application.
We have a series of 8 kinds with J 2 series to 10000 series.
A large quantity of motor options.
Shaft Rotation Flexibility.
