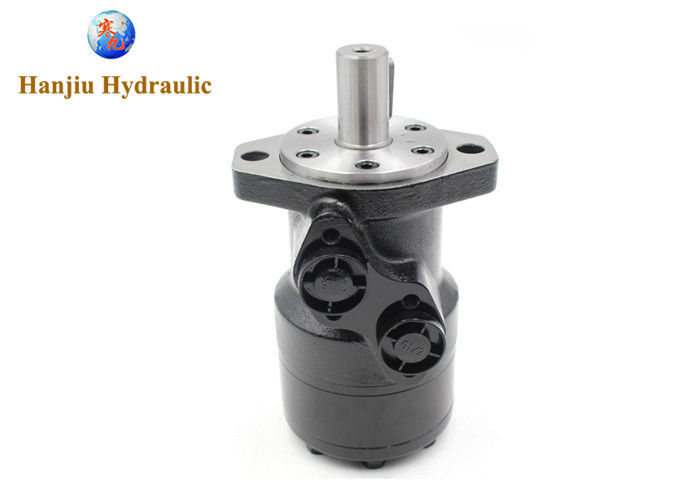

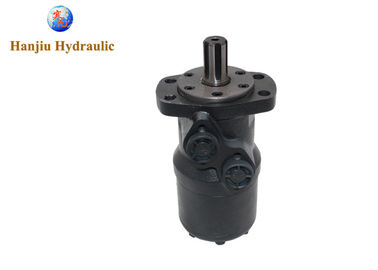

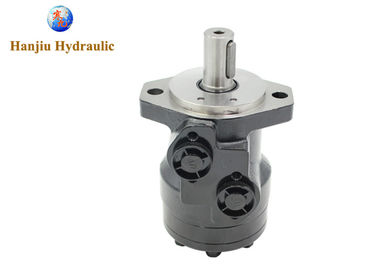

Hydraulic Winch Motor 125cc For Winches Of Wrecker / Flatbeds

Hydraulic Winch Motor 125cc for winches of wrecker, flatbeds

125cc Hydraulic Motor, this motor can be usd for hydraulic winches of wrecker, flatbeds

Quick details:

BMR-125-2AD

Displacement: 125cc

Shaft: straight and flat key

Shaft: 25mm

Ports: G 1/2

TWO-BOLT SAE A FLANGE MOUNTING

The standard mounting is the widely used SAE A two hole flange.

Speed range 10 - 1400 rpm

Max. continuous pressure drop 70 - 175 bar

Max. Continuous torque 45 - 300 Nm

Here is specification:

We supply motors we supply operate on the principle of an internal gear rotating within a fixed external gear. The internal gear transmits the torque generated by the application of pressure from the hydraulic oil fed into the motor which is then delivered via the motors output shaft.

The capacity of the motor you need will depend on factors including the pressure and the flow-rate of the hydraulic pump and the required performance (line speed) of the winch the motor is powering. Please contact us for guidance if in doubt.

Features include:

1. CONSTANT OPERATING TORQUE

Choosing the correct capacity of motor for your particular application will ensure an almost constant output torque across the operating speed range.

1. HIGH STARTING TORQUE

Torques from a stalled condition can be typically 80% of the equivalent running torque, ensuring good starting performance.

More Applications

• Mining conveyers

• Mobile mixer-feeders

• Steel handling equipment

• Ride-on concrete trowels

• Mobile concrete mixing

• Drill rig motors

• Injection molding

• Rock power crushers

• Concrete trowels

• Concrete screed

• Waste recycler

• Marine winches

• Direct wheel drive

– Crop sprayers

– Skid steer

– Harvesters

– Asphalt/concrete paving

machines

– Turf mowers

– All terrain vehicles
