| Type: | Truck Hydraulic Parts | Structure: | Sectional |
|---|---|---|---|
| Nominal Flow: | 20 Liters To 200 Liters | Max Pressure: | 350 Bar |
| Highlight: | hydraulic control valve,hydraulic monoblock valves |
||

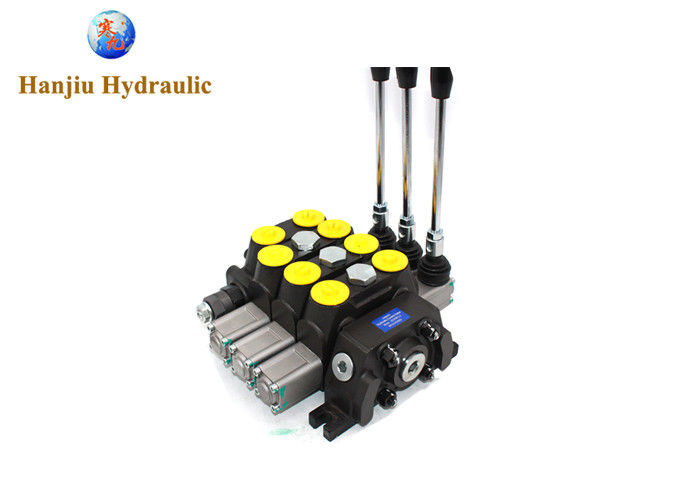

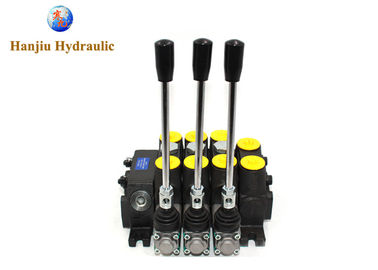

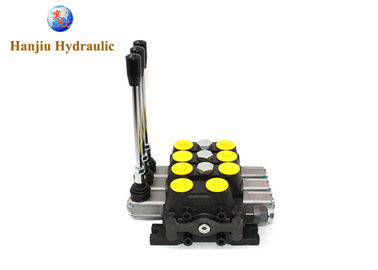

Truck Mounted Cranes Directional Control Valve DCV100 Manual Control
When safe, rugged, long-life performance is needed, Hanjiu Hydraulic Directional Valve & Power Systems products are there to do the job. Hanjiu Offer a full line of directional control valves, hydraulic controllers and crane specific solutions for this market. Hanjiu offer a range of original quality and OEM replacement hydraulic components for Construction, Mobile, Heavy duty equipment.
Hanjiu has developed application specific control solutions for this market, which are intended to improve machine performance and lower the installed cost. Our long standing application knowledge of these machines has enabled Parker to develop features truly valued by the customer and the end-user.
Hydraulic hand valves enable operator to control hydraulic system and individual components.
We supply all types of hydraulic valves like Monoblock, Sectional, Manual, Joystick, Cable, Pneumatic, Solenoid, electro-pnematic, electro-hydraulic, etc. which are mostly used in marien applications, construction machinery, agricultural machinery, heavy road vehicles and industry.
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
