Product Details:
Payment & Shipping Terms:
|
| Type: | DCV Hydrauic Valve | Structure: | Sectional |
|---|---|---|---|
| Nominal Flow: | 20 Liters To 200 Liters | Max Pressure: | 350 Bar |
| Operating Range: | 100 - 315 Bar | Temperature Range: | -40 °C ~ 80 °C |
| Control: | Pneumatic | ||
| Highlight: | hydraulic control valve,hydraulic monoblock valves |
||

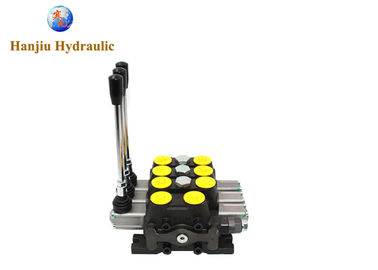

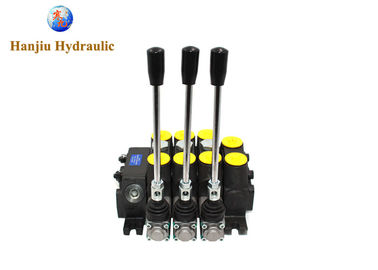

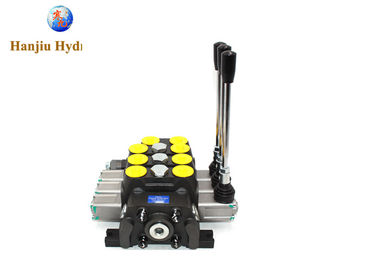

Hydraulic Valve for marine applications, sailboats, yachts and mega yachts, Sectioanl Manual Control
We design and supply hydraulic systems and components for sailboats, yachts and mega yachts which help you control, steer and manage the boat or ship easier. Our hydraulic systems are used for passarella, helipads, davits, cranes, winches, anchors, steering systems and simila
Hydraulic hand valves enable operator to control hydraulic system and individual components.
We supply all types of hydraulic valves like Monoblock, Sectional, Manual, Joystick, Cable, Pneumatic, Solenoid, electro-pnematic, electro-hydraulic, etc. which are mostly used in marien applications, construction machinery, agricultural machinery, heavy road vehicles and industry.
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
More related hydraulic items for hydraullic systems
Hanjiu customizes and designs products for different kinds of companies: Hydraulic Resellers, Hydraulic Distributors, Hydraulic Machines Manufacturers, Hydraulic Training, Hydraulic Fluid Tech Research, Hydraulic Repairing, Fluid Power Manufacturers, Hydraulic Systems Solutions, Fluid Power Solutions etc.
