Product Details:
Payment & Shipping Terms:
|
| Model No.: | DCV60 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | O/Y/A | ||
| Highlight: | hydraulic control valve,hydraulic directional valve |
||

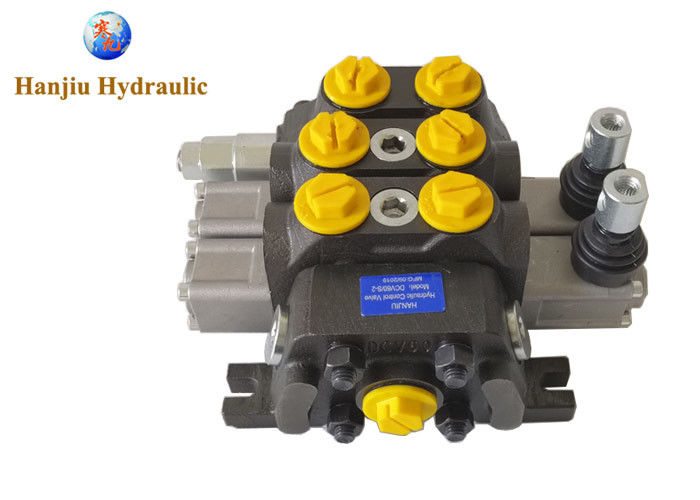

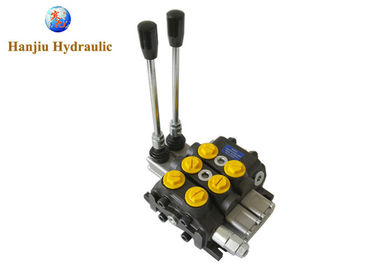

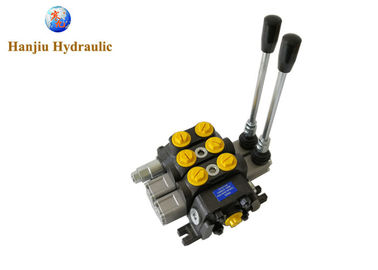

DCV60 liter High Pressure Manual Directional Control Valve Standard For drilling Machines
|
Norminal Flow
|
40 L/min
|
|
Max Flow
|
45 L/min
|
|
Max Pressure
|
315 bar
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional
Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
