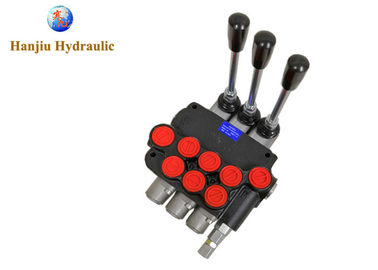

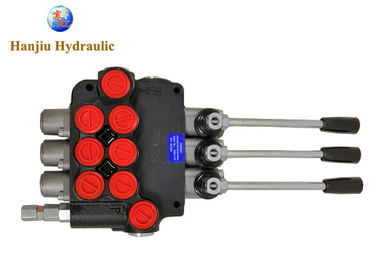

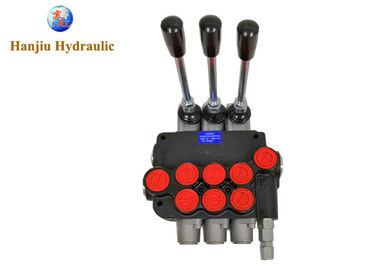

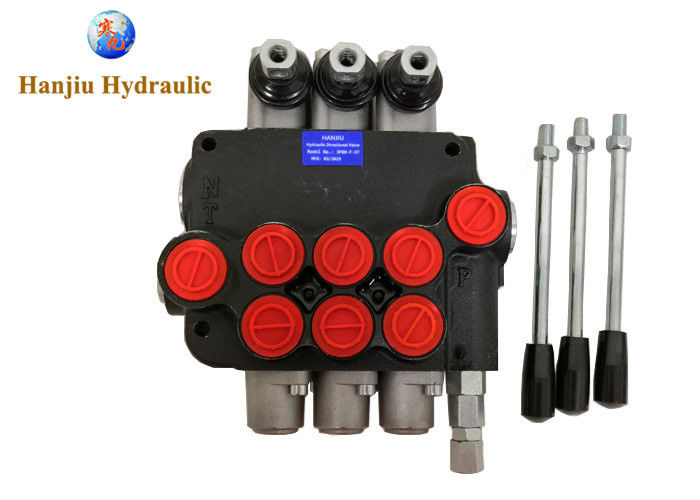

Monoblock Spool Directional Control Valve 3P80 Hydraulic Drilling Rigs Hand Control Valve

Hydraulic Drilling Rigs Hand Control Valve Monoblock Spool Directional Control Valve 3P80

Р80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 7 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

Mounting

The distributor is fixed with two bolts M8

Application:

This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor

Hanjiu is a leading hydraulic component manufacture,we produce hydrauic motors,hydraulic steering units,

directional control valve,gear pumps and more.High quality,stable delivery,competitive price and good after sales service

is the crucial factor of our rapid growth.
