Product Details:
Payment & Shipping Terms:
|
| Type: | Orbit Hydraulic Motor | Model No.: | BMH-500-4-G-S |
|---|---|---|---|
| Displacement: | 500ml/r | Flange: | 4 Bolt |
| Shaft: | 31.75mm Stragith Shaft | Port: | 7/8-14 O-ring |
| Rotation: | CCW | Color: | Black |
| Highlight: | slow speed high torque motor,omt hydraulic motor |
||

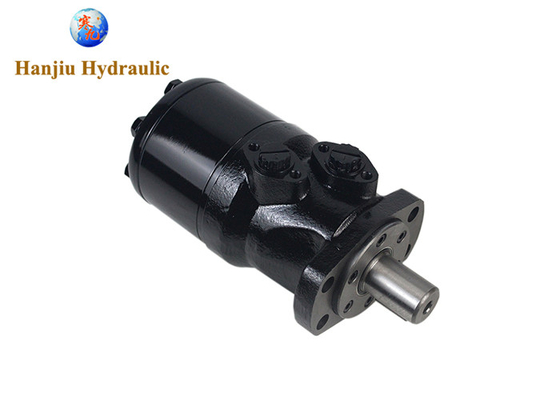

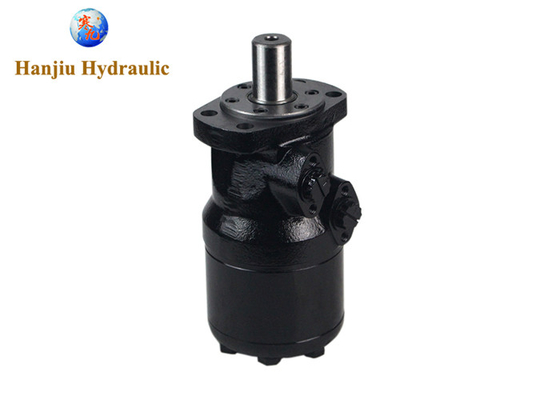

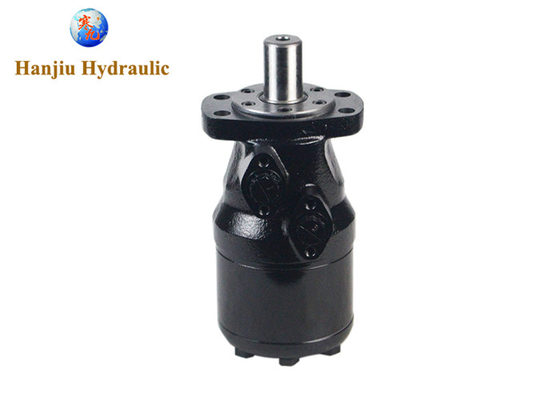

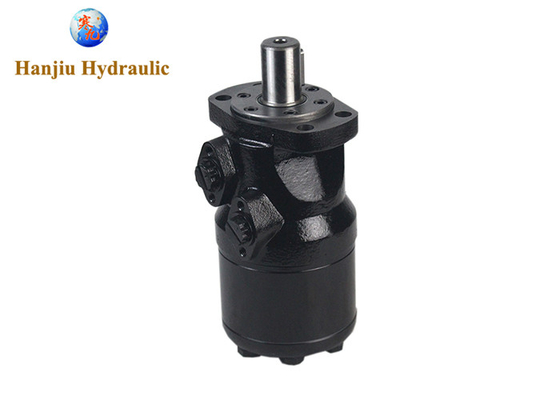

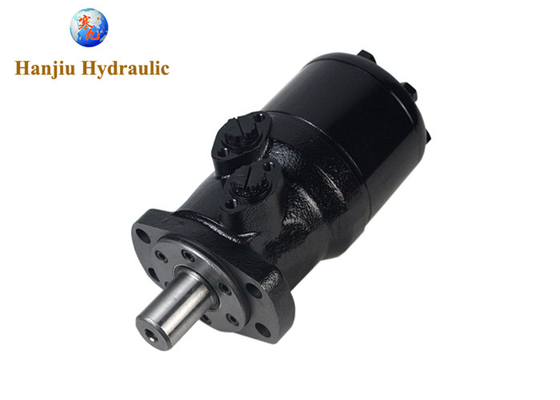

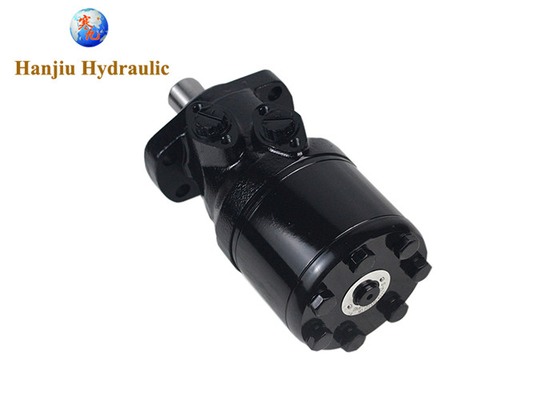

BMH Series Hydraulic Motors 500ml/r 4-bolt flange 31.75mm straight shaft
Quick review:
Model No.: BMH-500-4-G-S
| displacement | 500 ml/r |
| flange | 4-bolt |
| shaft | straight 31.75mm |
| port | 7/8-14 O-ring |
| rotation | CCW |
BMH hydraulic motor Main specifiction:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
