Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Gear Motors | Displacement: | OMRWN50,OMRWN80,OMRWN100,OMRWN125,OMRWN160,OMRWN200,OMRWN250,OMRWN315,OMRWN400 |
|---|---|---|---|
| Applications: | Material Handling & Lifting Equipment | Replacement: | OMRWN |
| Hydraulic Valve: | Spool Valve With Needle Bearing | Warranty: | 12months |
| Highlight: | tapered hydraulic wheel motor,omron 375 hydraulic wheel motor,bolt mount hydraulic wheel drive motor |
||

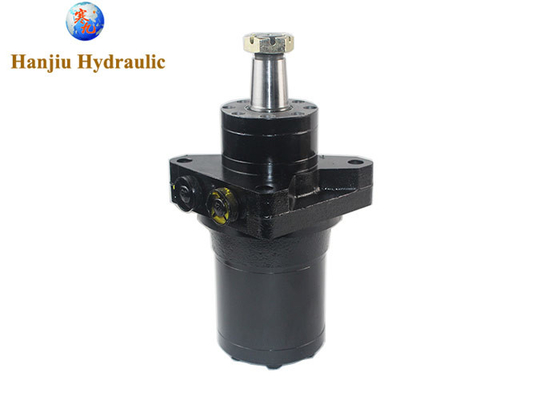

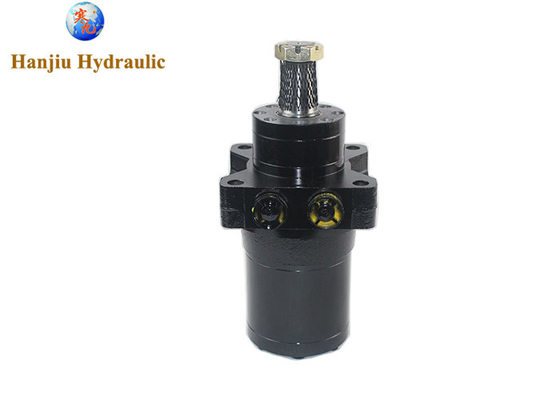

1-1/4" Tapered Hydraulic Wheel Motor OMRW375 Orbit Motor Shaft 4 Bolt Mount
Product details:
Output volume (cc/rev): 375.00
Shaft: 1-1/4" tapered 1:8 threaded shaft
max r.p.m.: 750
Torque max. (Nm): 280
Power max. (kW): 15.0
Inlet pressure (bar): 175
Pressure difference (bar): 175
Volume flow max. (l/min): 60
Shaft seal version: High pressure
Engine version: with non-return valves
Connection: G 1/2"
Leakage oil connection: G 1/4"
L (mm): 123.00
L1 (mm): 20.0
ORDER DETAILS
| Mounting flange: | Wheel | |||||
| shaft size | φ82.55mm | |||||
| bolt circle diameter | φ147.6mm | |||||
| Shaft | Main port size Port style | Drain port | size | High pressure | Check valve | Main type designation |
| Tap. Ø35 mm | G1/2 | side port | G1/4 | yes | yes | BMRWN |
| Tap. Ø 1 1/4 in | 7/8-14 UNF | side port | 7/16-20 UNF | yes | yes | BMRWN |
RELATED DANFOSS TYPE CODE
| Displacement | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 |
| Tap. Ø35 mm | 151-6300 | 151-6301 | 151-6302 | 151-6303 | 151-6304 | 151-6305 | 151-6306 | 151-6307 | 151-6308 |
| Tap. Ø 1 1/4 in | 151-6430 | 151-6431 | 151-6432 | 151-6433 | 151-6434 | 151-6435 | 151-6436 | 151-6437 | 151-6438 |
HANJIU was established in the early 21st century. Its clear vision is to continue to provide development support to hydraulic partners around the world through our advanced hydraulic production technology and world-class products, so as to have a positive impact on our industry.
We have more than 1,000 customers in more than 70 countries and regions around the world. We focus on more than 20 years of manufacturing, cooperation and fluid power, hydraulic equipment, mobile equipment and other fields
HANJIU produces and sells high-quality hydraulic motors, hydraulic steering gears and hydraulic directional valves. We will provide customers with preferential prices, fast delivery and 12 months warranty.
We are a professional manufacturer and exporter of hydraulic components,Your forever partner.
