Product Details:
Payment & Shipping Terms:
|
| Product: | Hydraulic Gertor Motor | Displacement: | 750CC |
|---|---|---|---|
| Material: | Cast Iron | Max.Speed(rpm): | Cont.155rpm/int.160rpm |
| Max.Torque(N.m): | Cont.830N.m/int.1040N.m | Max. Pressure Drop: | Cont.12.5MPa/int.16MPa |
| Max.flow(L/min): | Cont.75L/min~int.90L/min | Oil Temperature: | -35℃~80℃ |
| Highlight: | magneto mount Orbit Hydraulic Motor,BSPP oil ports Orbit Hydraulic Motor,35mm key shaft Orbit Hydraulic Motor |
||

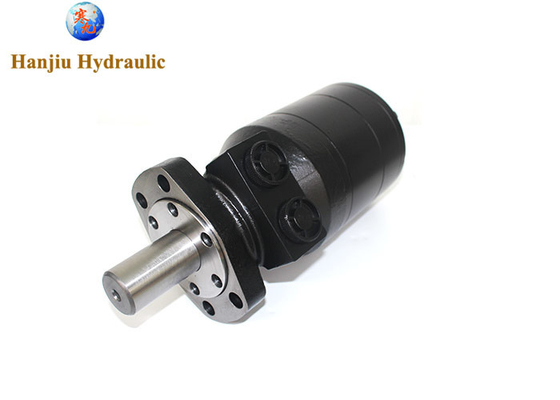

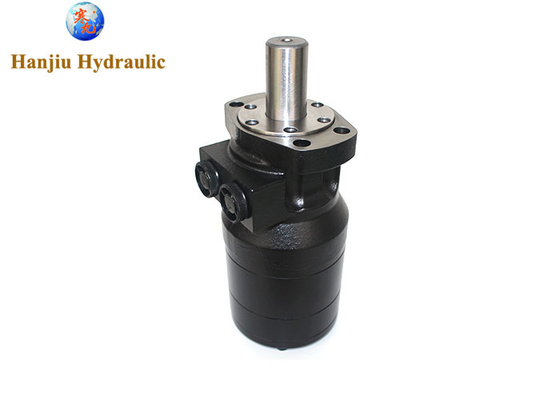

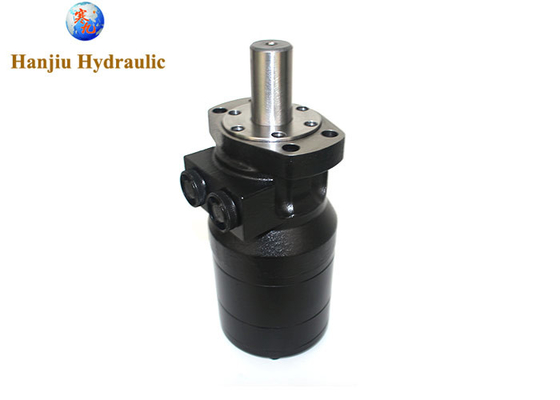

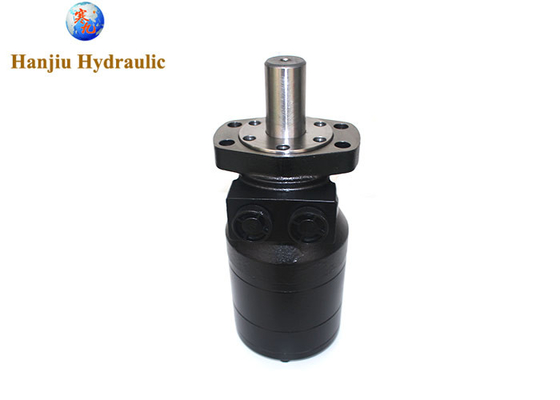

BMH750 Orbit Hydraulic Motor, magneto mount ,35mm key shaft ,BSPP oil ports auger motor
BMH series orbital hydraulic motor is a kind of shaft distribution hydraulic motor. The series motor uses a column-mounted rotating stator pair, which has a structure that works under high pressure and can automatically compensate, so that the whole machine has high efficiency and good retention. Long working life. Its characteristics:
• The use of advanced stator parameters design, low starting pressure, high efficiency, and good retention, smooth operation.
• The use of high-pressure shaft seal, can carry high back pressure, allowing series, parallel use.
• The special design of the linkage shaft structure can meet the low noise requirements.
• Special flow distribution system parameter design to meet low noise requirements.
• The motor is compact and easy to install.
Product details:
Displacement:750cc
Flange:4 holes magneto mounting
Shaft:35mm key shaft
Oil ports:G1/2
Main Specifications:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
Geroler motors are classified into several types based on their design and specific applications
1. Standard Geroler Motors
Most common type with a single rotor orbiting within a stator.
Wide range of sizes and displacements to suit various applications.
Ideal for general-purpose use in construction, agriculture, and industrial machinery.
2. High-Torque Geroler Motors
Designed for heavy-duty applications requiring high torque output.
Larger rotor and stator to generate more torque.
Used in excavators, cranes, and other heavy equipment.
3. Low-Speed Geroler Motors
Optimized for low-speed operation with high torque.
Specialized gear ratios to achieve lower speeds.
Used in winches, conveyors, and other applications requiring slow, powerful movement.
4. High-Pressure Geroler Motors
Designed to withstand high operating pressures.
Reinforced internal components to handle higher loads.
Used in hydraulic systems requiring high force and pressure.
5. Variable Displacement Geroler Motors
Allow for adjustment of output torque and speed by changing the displacement.
Used in applications requiring precise control of movement.
6. Geroler Motors with Integrated Valves
Combine a Geroler motor with integrated valves for simplified control and reduced system complexity.
Used in applications where space is limited or precise control is needed.
7. Geroler Motors with Special Shaft Configurations
Available with various shaft configurations such as keyed, splined, or tapered shafts.
Chosen based on the specific requirements of the application.
8. Geroler Motors with Special Mounting Flanges
Available with different mounting flange types to suit various installation requirements.
Chosen based on the specific machine or equipment being used.
9. Geroler Motors with Special Seals
Available with specialized seals for specific operating environments or fluids.
Chosen based on the fluid type, temperature, and pressure conditions.
10. Geroler Motors with Special Materials
Available with special materials for improved durability, corrosion resistance, or other specific properties.
Chosen based on the operating environment and requirements.
These are just some of the many types of Geroler motors available. The specific type chosen will depend on the application's requirements, such as torque, speed, pressure, size, and operating environment.
