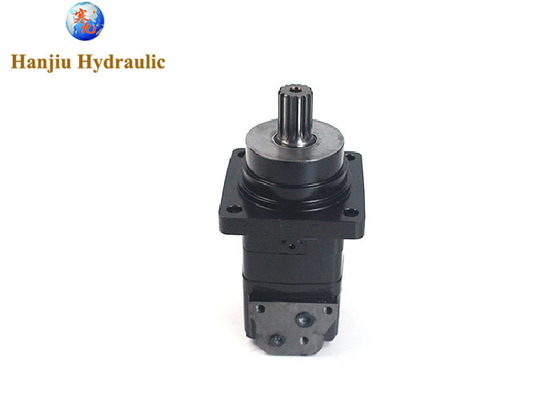

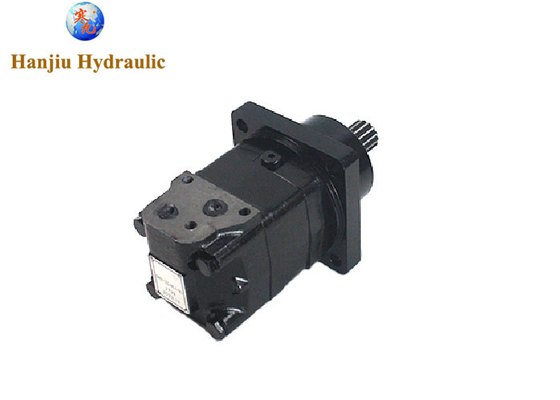

Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port

Large Image : Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE,ISO9001
Model Number:	BMSY-200-we-f-mu

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T, Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	ORBITAL MOTOR	Displacement:	200cc
Max Speed:	Cont.375/int.450 Rpm	Max Torque:	Cont.400/int. 466 N.m
Oil Temperature:	Normal-30℃-90℃	Max Flow:	Cont. 75/int. 90 L/min
Highlight:	200CC hydraulic wheel motor , Manifold Side Port hydraulic wheel motor

Hydraulic Wheel Motor replace Danfoss type BMSY hydraulic motor displacement 200CC,manifold side port

Details as below:

type code :BMSY-200-WE-F-MU-B

Port Size:manifold ports,φ12.7,φ15.8
flange: wheel mounting
displacement:200cc
Shaft:31.75mm,14 teeth spline shaft
Port Location:side ported
Flow Rating :75l/min
Max Speed:cont.240rpm,int.280 rpm
Shaft seal:High pressure seal Kit
function:low leakage
Country of Manufacture China

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	394	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	880	910
	int.	240	300	370	430	466	540	658	980	990
	peak	260	320	400	472	650	690	740	751	760
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11	9
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	12	11
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	16	14
	int.	21	21	21	21	16	16	14	19	15
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port 0

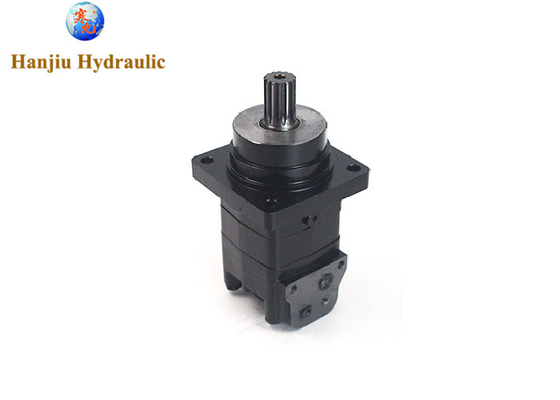

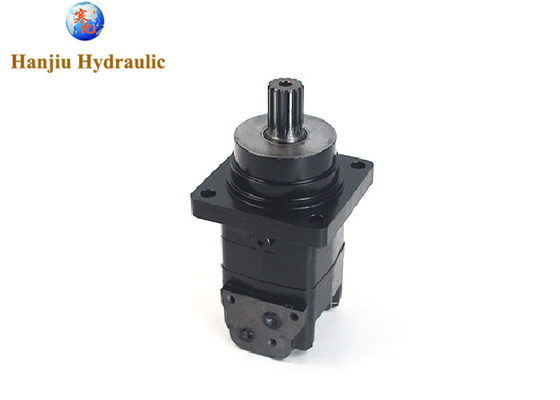

Other types of BMSY Motor, with different mounting flange and shaft

Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port 3

Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port 4

Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port 7

HANJIU is an expert in hydraulic motors . HANJIU orbit motors have complete specifications, fast manufacturing, reasonable prices and fine quality. HANJIU enthusiastically looks forward to working for people all over the world.

Features

• Three zone design for

longer life and true

bi-directionality.

• Bearings that meet the

highest standards of the

industry

• Options to optimize

performance in every

application

• Integrated cross-over

relief valve option

Benefits

• Easy to design in a

system

• Proven reliablity and

performance in tough

applications

• Compact design that

maximizes power density

Applications

• Skid Steer Attachments

• Swing Motor

• Brush Cutters & Mowers

• Harvesting Equipment

• Directional Boring any

place pressure relief

protection is optimal

for system or motor

performance and life

• Turf equipment
