| Categories: | Hydraulic Wheel Motor | Name: | OMTW 500,MT500 |
|---|---|---|---|
| Max.output: | Cont. 28.8 Kw/int.35 Kw | Max Torque: | Cont.1220 N.m/int.1370 N.m |
| Flange: | φ200mm Wheel Motors | Shaft: | Cone Shaft 1:10 |
| Highlight: | OMTW 500 hydraulic wheel drive motor,151B3035 hydraulic wheel drive motor,MT500 danfoss wheel motor |
||

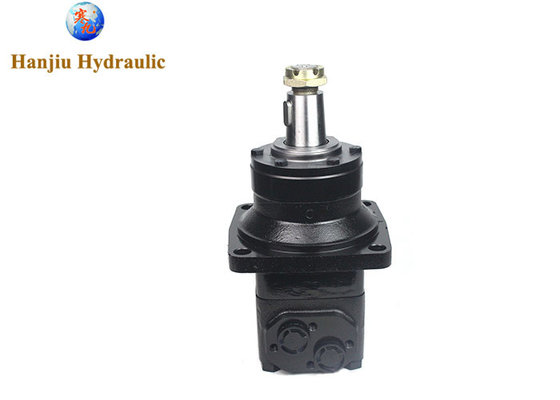

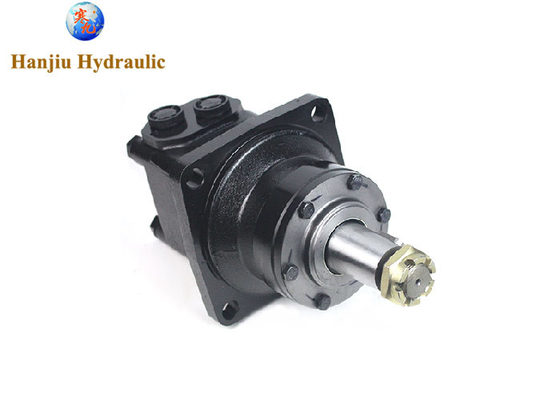

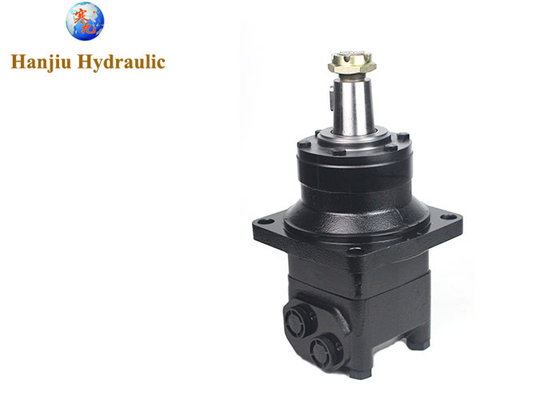

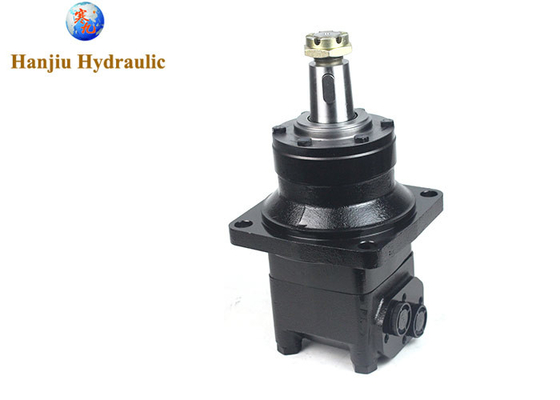

Engine OMTW 500 Danfoss 151B3035 wheel drive motor ,Tapered 45 mm shaft,side ports
Main Specifications:
| Type | BMTW 160 |
BMTW 200 |
BMTW 230 |
BMTW 250 |
BMTW 315 |
BMTW 400 |
BMTW 500 |
BMTW 630 |
BMTW 800 |
|
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) |
cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
other types we supply same as Danfoss
hydraulic motors are essential components in various industries, enabling the conversion of hydraulic energy into mechanical energy. The choice of hydraulic motor depends on the specific application requirements, including torque, speed, efficiency, and control. Gear motors, vane motors, piston motors (including radial and axial variations) are some of the most commonly used types of hydraulic motors. Understanding the different types of hydraulic motors can help industries select the most suitable motor for their specific needs.
