| Type: | Wheel Motor | Model No.: | BMPW100 |
|---|---|---|---|
| Speed: | Cont.310/int.385rpm | Torque: | Cont.360/int.440 Nm |
| Max Power: | Cont.10/int.12KW | Max Flow: | Cont.60/int.75LPM |
| Highlight: | 100cc Wheel Drive Motor,Hydraulic Motor With Straight Key Shaft,100cc Gerotor Motor |
||

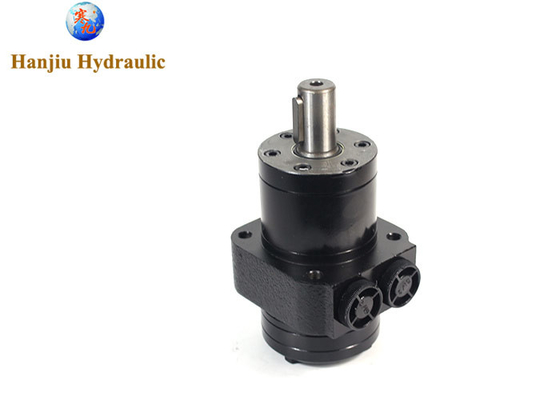

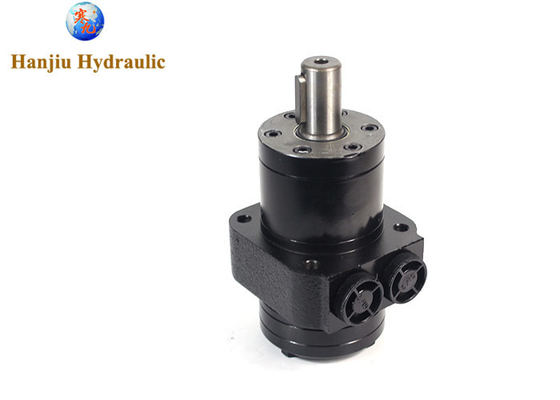

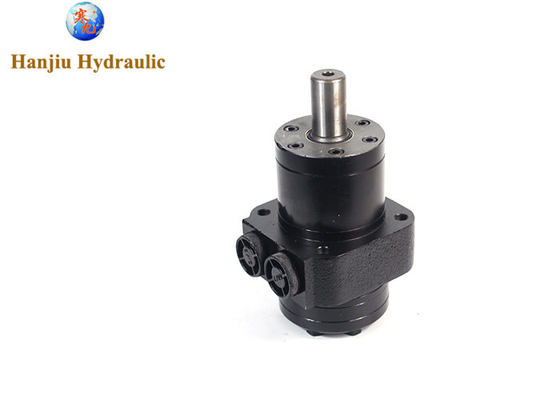

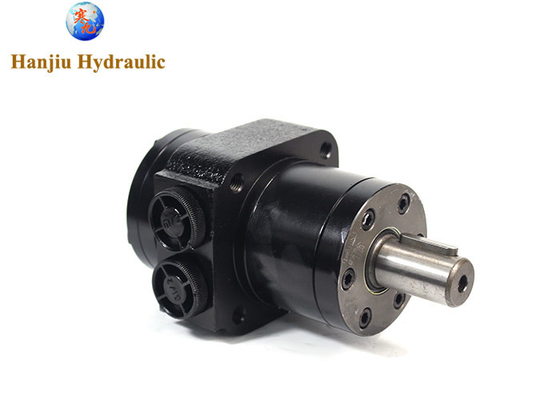

Hydraulic motor MP-W100C wheel drive motor with straight key shaft 100cc gerotor motor
Hanjiu BMPWN-100 motors has the same specification of below types
151-7103
hydraulic motors specification as below:
- Displacement: 100cc
- Flange :wheel Ø103mm
- Shaft: key 25 mm straight shaft
- Ports: G1/2
- Drain port:G1/4
Specification:
| Type | BMP 36 |
BMP 50 |
BMP 80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 |
|
Hanjiu hydraulic orbit motors include BMP, BMR, BMS, BMT, BMV, etc., 100% of which can be used to replace
Danfoss, Eaton CHAR-LYNN, M+S, etc. Looking forward to your purchase, Hanjiu will provide you with the most comfortable service.
