Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Power Steering | Brand: | HANJIU |
|---|---|---|---|
| Displacement: | 80cc | Application: | Tractors , Front Loaders,excavators |
| Pressure: | 15mpa | Shock Valve: | 21mpa |
| Highlight: | Hydrostatic Steering 47158t1,47158t1 Tractor Aftermarket Parts,Rustproof Hydrostatic Steering |
||

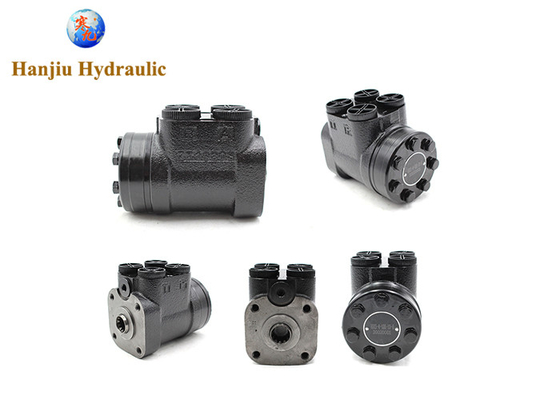

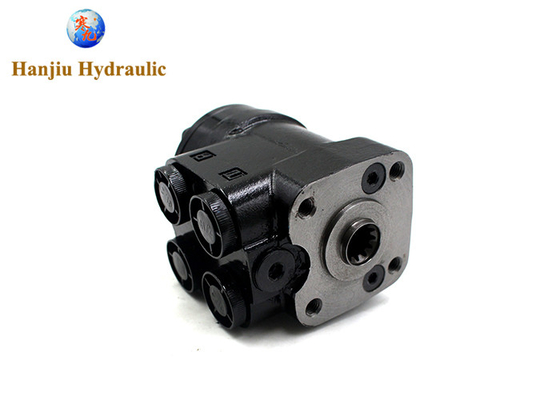

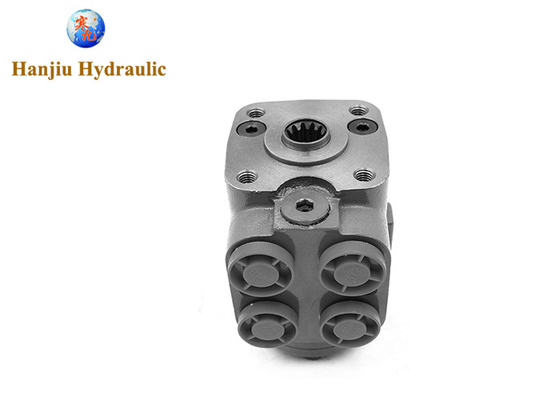

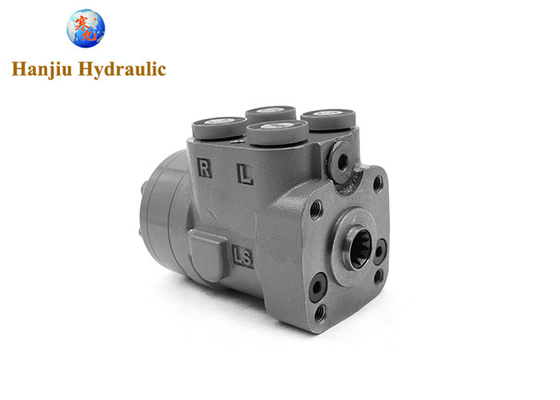

Hanjiu technology supply all series hydrostatic steering pump for tractor,
original type is 47158T1
matching Danfoss ospc open center non-reaction types
Technical data sheet:
| Parameters | Series 101S-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Hanjiu's orbitrol is affordable and of high quality. We always insist on letting customers choose satisfactory products, based on integrity, based on quality, adhere to high quality and affordable price as the development direction, set up a special R & D department, and constantly carry out technological innovation in order to maximize the needs of customers. Our Orbitrol is competitively priced, affordable, and of high quality. With cost-effective Hanjiu company has many customers in more than 30 countries around the world, we have always pursued customer satisfaction is our satisfaction. If you need to buy a favorite orbitrol, you are welcome to check with me !
orbitrol steering unit
orbitrol valve
orbitrol steering valve
orbitrol steering valve
orbitrol steering valve parts seals
orbitrol steering
