| Features: | High Pressure Oil Seal | Product Name: | Drive Motor |
|---|---|---|---|
| Brand Name: | HANJIU | Model Number: | BMP |
| Displacement: | 50cc - 500cc | Application: | Grape Harvesters Part |
| Highlight: | #84122562 hydraulic drive motors,grape harvester hydraulic drive motors,hydraulic wheel drive motor |
||

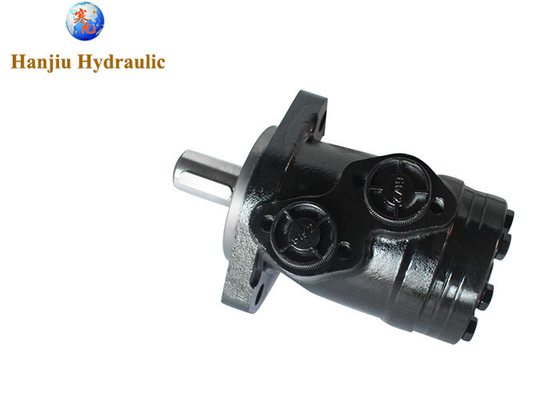

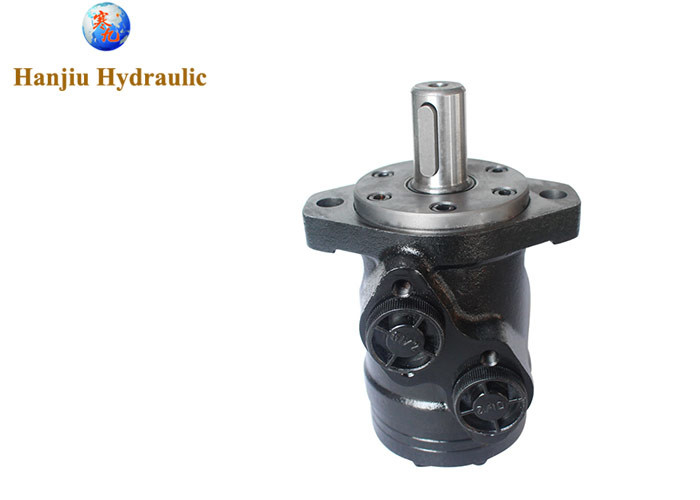

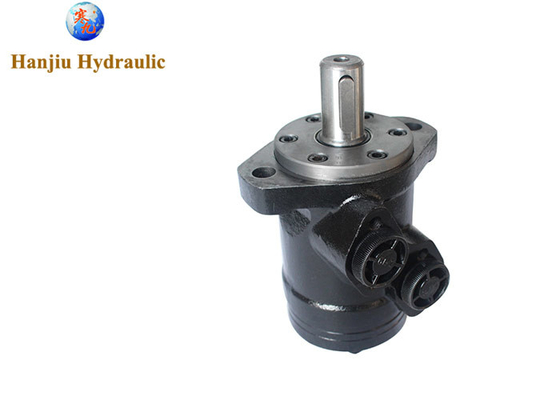

grape harvester spare parts #84122562 hydraulic drive motors
► Characteristic Features
Hydraulic Motor BMP same as OMP and M+S MP Motors
1. Low pressure of start up, provide smooth reliable operation and high efficiency.
2. Special design in the driver-linker and prolong operating life.
3. Compact volume and easy installation.
4. High pressure oil seals
5. The output shaft with the deep groove ball bearing, can bear certain axial force and radial force.
widely used on grape harvesters,---destemmer belt 7030 M , 8030 L , 9000 M/L/X , VN 2090
grape harvester--9040L
► Specification
BMP / OMP Motors
| Type | BMP 36 |
BMP 50 |
BMP 80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
