| Item: | Hydraulic Steering Unit | Model No.: | 101, 102, 103, 109, BZZ, 060 Series |
|---|---|---|---|
| Displacement Range: | 8 Cc - 1000 Cc | Check Valve: | Available |
| Safety Valve: | Available | Integrate Valve: | Available |
| Function: | ON, OR, CN, LS | Application: | Any Hydraulic Direction Control Systems |
| Highlight: | 1000cc hydraulic steering control unit,8cc hydraulic steering control unit,OSPB hydraulic steering control unit |
||
How to choose the right steering unit and some things you should pay attention to when choosing a steering unit

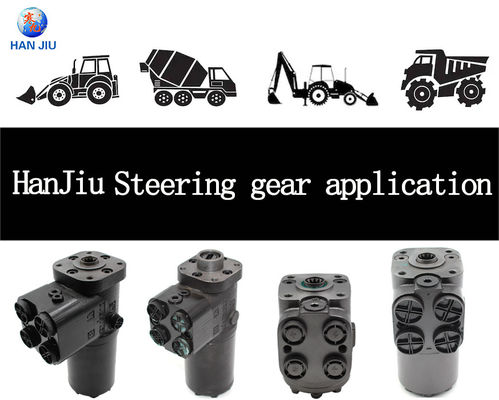

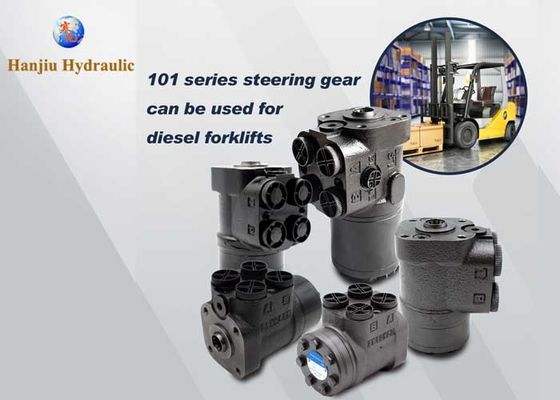

Due to its simple design and compact size, 101S steering gear is very suitable for mobile equipment applications, especially agriculture, engineering, and fishery.
When choosing a steering gear, there are many factors to consider, such as performance, quality, reliability, added value, and finally cost. As new entrants flood the market, it is clear that not all manufacturers are perfect. Choosing the wrong option can cause you to pay a high price and embark on a path of frustration.
Before you choose a steering gear, let us discuss the crucial first step: how to determine the displacement volume of the steering gear. A simple, fast and intuitive way is to measure the height of the stator and rotor
Displacement (how much liquid is needed for one revolution) is determined by the height of the stator and rotor, the higher the height, the greater the displacement. Displacement determines the number of turns your device steering wheel needs to rotate
The Gerotor stator and rotor of the steering gear are made of Ring and Star. They are made of alloy materials. The higher the hardness, the more wear-resistant the longer the use time. The surface finish is also very important. The smooth surface can help reduce the friction and wear of the stator and rotor. The distance between the stator and rotor Ring and star of the steering gear is as small as possible. The smallest distance invisible to the naked eye is the best, which can ensure flexible movement, low impact and vibration during work, low noise, and low pressure loss. Ensure that all control parameters (speed, pressure, flow, torque) of the steering gear are stable and maintain good performance.
| OEM Code | Hanjiu Code | Fuction | ||
| OSPB | without relief valve & shock valves | 50cc | 101S | ON/CN/LS |
| OSPB | 80cc | 101S | ON/CN/LS | |
| OSPB | 100cc | 101S | ON/CN/LS | |
| OSPB | 125cc | 101S | ON/CN/LS | |
| OSPB | 160cc | 101S | ON/CN/LS | |
| OSPB | 200cc | 101S | ON/CN/LS | |
| OSPB | 250cc | 101S | ON/CN/LS | |
| OSPB | 315cc | 101S | ON/CN/LS | |
| OSPB | 400cc | 101S | ON/CN/LS | |
| OSPB | 500cc | 101S | ON/CN/LS | |
| OSPC | 50cc | 101S | ON/CN/LS | |
| OSPC | 80cc | 101S | ON/CN/LS | |
| OSPC | 100cc | 101S | ON/CN/LS | |
| OSPC | 125cc | 101S | ON/CN/LS | |
| OSPC | 160cc | 101S | ON/CN/LS | |
| OSPC | 200cc | 101S | ON/CN/LS | |
| OSPC | 250cc | 101S | ON/CN/LS | |
| OSPC | 315cc | 101S | ON/CN/LS | |
| OSPC | 400cc | 101S | ON/CN/LS | |
| OSPC | 500cc | 101S | ON/CN/LS | |
If you need help in determining the displacement of the steering gear, or when selecting and maintaining the steering gear, please contact our team.
HANJIU The hydraulic steering gear expert by your side !
