Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Steering Pump Valve | Oil Port: | G1/2 |
|---|---|---|---|
| Quality: | Grade AAA | Material: | Metal |
| Applications: | Cat 1477343 | Warrty: | 6months |
| Highlight: | G1/2 hydraulic power units,Cat 1477343 hydraulic power units,101s hydraulic power units |
||

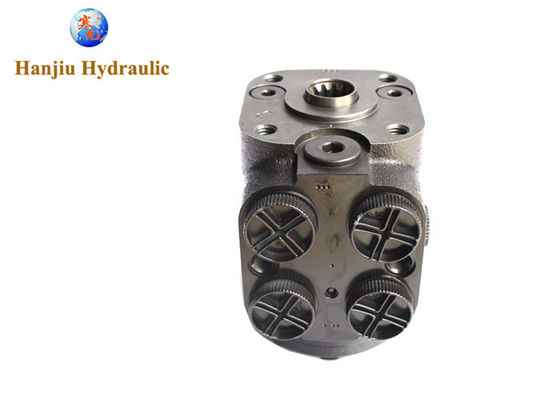

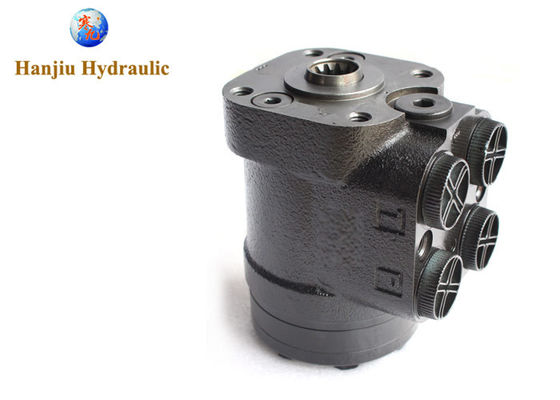

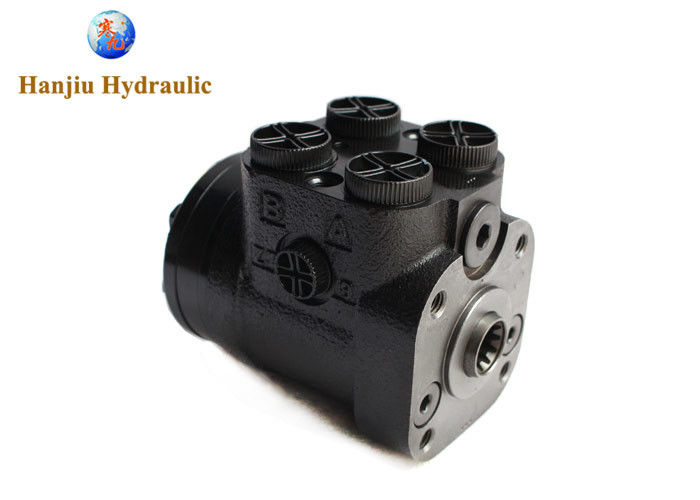

Eaton Cat 1477343 Hydraulic Steering Control Pump industrial hydraulic power units
| Part number | 101S series |  |
|
| Description | eaton 263-1208-002 | ||
| Category | STEERING UNITS AND NON STANDARD PARTS | ||
| Sub-category | Carterpillar STEERING UNITS AND PARTS | ||
| Manufacturer | HANJIU | ||
| Weight | 5.9kgs | ||
| Parameters | Series 101S-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| 211-1001-002 |
| 211-1002-002 |
| 211-1003-002 |
| 211-1004-002 |
| 211-1005-002 |
| 211-1006-002 |
| 211-1007-002 |
| 211-1008-002 |
| 211-1009-002 |
| 211-1010-002 |
| 211-1011-002 |
| 211-1012-002 |
| 211-1015-002 |
| 211-1016-002 |
| 263-1032-052 |
| 263-1032-072 |
| 263-1097-082 |
| 263-1099-002 |
| 263-1104-002 |
| 263-1105-002 |
| 263-1161-002 |
| 263-1163-002 |
| 263-1166-002 |
