Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Steering Control Pumps | Oil Port: | G1/2 |
|---|---|---|---|
| Quality: | Grade AAA | Material: | Metal |
| Displacement: | 200cc | Applications: | Used For , MF, , Fiat, Class, MTZ Etc. |
| Highlight: | danfoss steering unit parts,200cc Steering Unit Parts,danfoss orbitrol steering unit |
||

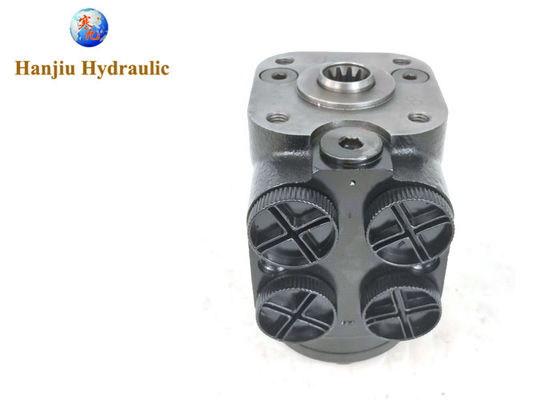

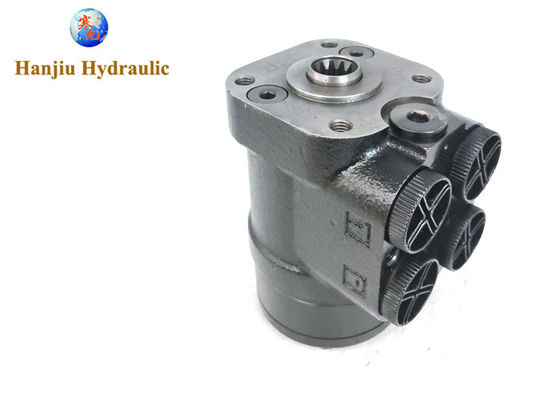

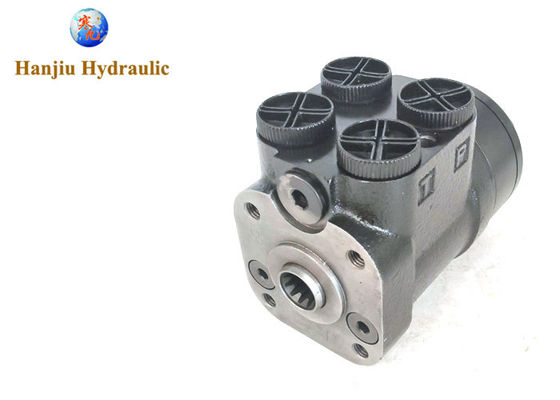

Danfoss Steering Unit Parts OSPB 200ON 150-3044 BSP Ports JCB Orbitrol OEM Quality
| Part number | 101S-200 |  |
|
| Description | OSPB 200 ON 150-3044 JCB ORBITAL | ||
| Category | STEERING UNITS AND NON STANDARD PARTS | ||
| Sub-category | DANFOSS STEERING UNITS AND PARTS | ||
| Manufacturer | HANJIU | ||
| Weight | 5.9kgs | ||
Function of the incorporated valve:
Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.
Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.
Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.
Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder
side is greater than the inlet side. It prevents steering wheel kick.
Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.
| Parameters | Series 101S-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
OPSB 100 ON 150-0027
OSPB 100 CN 150-0127
OSPB 125 ON 150N0024
OSPB 160 ON 150-0028
OSPB 160 ON 150-3027
OSPB 200 ON 150-0029
OSPB 200 ON 150-0044
OSPC 125 ON 150N1211
OSPC 125 ON 150N1239
OSPC 125LS 150-1232
OSPC 125OR 150N1031
OSPC 160 CN 150-0178
OSPC 160 LS 150-1186
OSPC 160 LS 150-1219
