Product Details:
Payment & Shipping Terms:
|
| Features: | Match /M+S/Eaton/Char_lynn | Material: | Cast Iron /Steel |
|---|---|---|---|
| Application: | Construction Machines, Mine Machines | Displacement: | 400cc |
| Max.speed(rpm): | Cont.724rpm/int.924rpm | Max.torque(N.m): | Cont.295N.m/int.445N.m |
| Max.pressure Drop: | Cont.21Mpa/int.31Mpa | Oil Temperature: | Normal-35℃-80℃ |
| Viscosity: | 42-74mm2/s | ||
| Highlight: | 400cc Orbit Motor,74mm2/s Orbit Motor,Harvesters Orbit Motor |
||

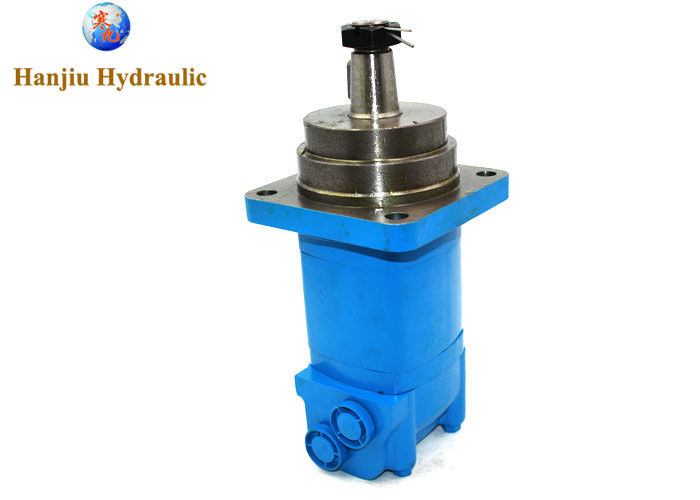

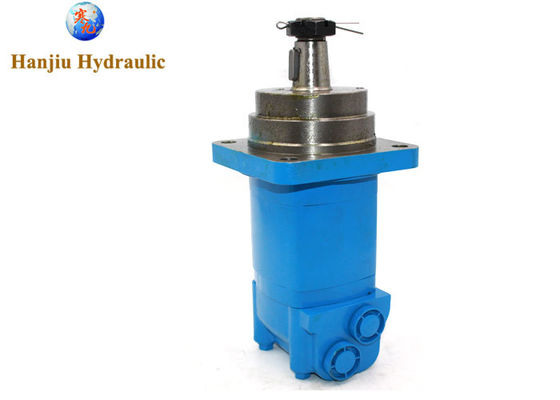

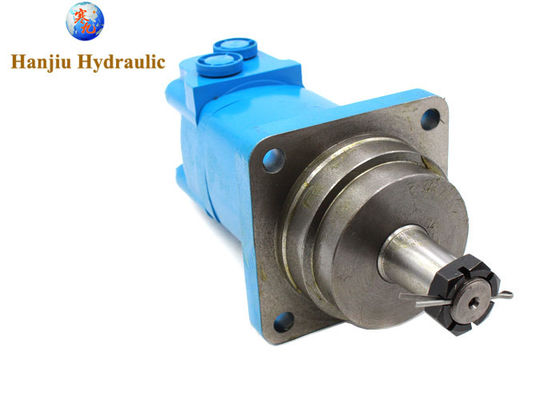

John Deere 0331356717 CB11480558,395/24.0 harvesters hydraulic orbital motors agricultural machines
HANJIU BMK2 Series hydraulic motors wheel motors widely used on agricultural machines, especially on harvesters
like John Deere/ harvesters
JOHN DEERE CB11480558
JOHN DEERE CB11480559
JOHN DEERE CB11480557
dispacement:400cc
flange:wheel flange φ147.6mm
shaft:31.75mm tapered shaft with straight key
ports:7/8-14UNF
Main specification
| TYPE |
BMK2 |
BMK2 160CC |
BMK2 |
BMK2 |
BMK2 |
BMK2 |
|
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | |
Max.Pressure.Drop(Mpa) |
cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 7 |
| int. | 95 | 115 | 115 | 115 | 115 | 24 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | |
APPLICATIONS:
Hanjiu is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.
we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.
