| Product Name: | Hydraulic Wheel Motor | Max Working Temperature: | 80° |
|---|---|---|---|
| Displacement: | 315 , 400 , 500 , 630 , 800 , 985 | Applications: | Road Rollers,Winches |
| Max Allowable Back Pressure: | 10Mpa | Max.Output.Power(cont.)(Kw): | 32 |
| Highlight: | hydraulic wheel drive motors,hydraulic track motor |
||

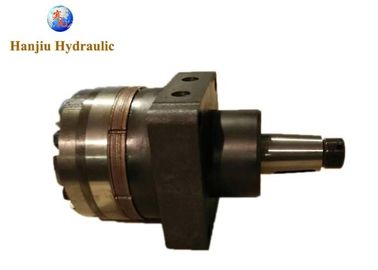

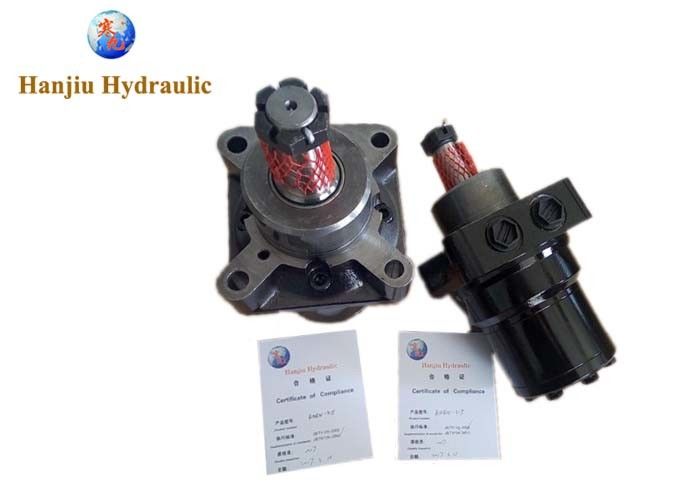

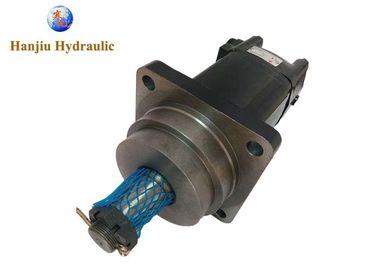

Hydraulic Wheel Motor BMSW 315 For Road Rollers, Mining, Construction machinery
Hydraulic Wheel Motor BMSW is one type of high torque Iow speed hydraulic motors,
with high efficiency and long life. BMSW motor has a wide Speed rangee,
high starting torque and rotating stable at high speed Compact and light,
it can be connected to working machine directly, adapted to all kinds of
Iow speed heavy load facilities.
Characteristic Features:
* bearing higher pressure
* A variety of connection type of flange output shaft and oil port .
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.
* Easy to Handle
Main Specifications:
| TYPE | BM5-315 BM5S-315 BM5W-315 |
BM5-400 BM5S-400 BM5W-400 |
BM5-500 BM5S-500 BM5W-500 |
BM5-630 BM5S-630 BM5W-630 |
BM5-800 BM5S-800 BM5W-800 |
BM5-985 BM5S-985 BM5W-985 |
|
| Displacement(ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max.Torque(N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
| int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 | |
| peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 | |
| Speed.Range(cont.)(r/min) | 10-475 | 9-375 | 8-300 | 6-238 | 5-187 | 5-154 | |
| Max.Flow(cont.)(L/min) | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max.Output.Power(cont.)(Kw) | 32 | 32 | 32 | 32 | 32 | 24 | |
| Weight(kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 |
37.2 |
|
MOTOR CROSS REFERENCE TABLE |
||||||||
| HANJIU HYDRAULIC |
M+S HYDRAULIC |
EATON CHAR LYNN |
ROSS TRW |
WHITE CROSS |
PARKER | SAM BREVINI |
BOSCH RECROTH |
|
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV |
MGV GMV |
||||
Applications :
BMSW hydraulic motors are widely applied in agriculture machinery, fishing
machinery, plastic industry, mining, and construction machinery , Road Rollers,Winches .
conveyor drives, winches, agricultural machinery, forest machinery, cranes, sawmill equipment and lifts/elevators.
